Description

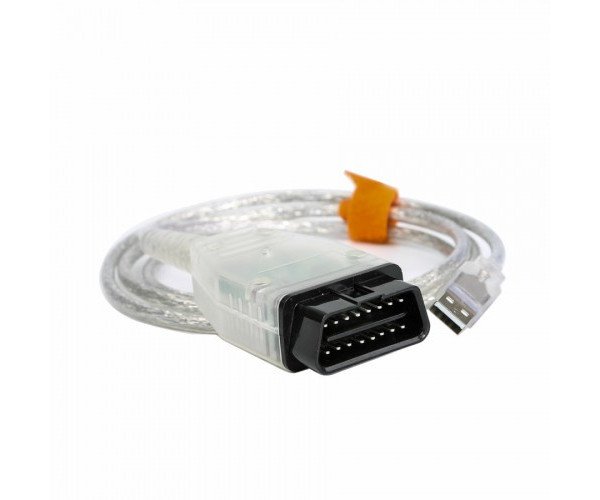

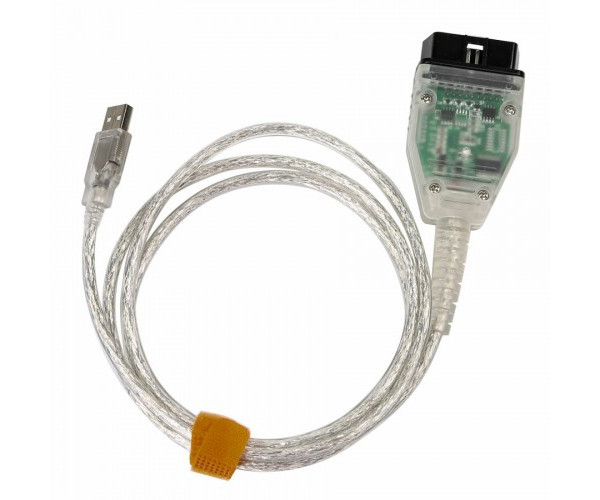

Mangoose for Toyota Diagnostics and Reprogramming Interface With Completely New Chip

Language: English
Support Computer System: Windows XP 32Bit
Update: This Cannot Be Updated
Software Version: V14.10.028

This Cable Can not Do ECM Programming

Description

The Mangoose includes a J2534 driver and delivers full-speed (12mps) USB 2.0 performance.

Specification

1. Mangoose Features

1)Lost cost, high performance pass-thru diagnostic tool for use with PC
2)Simple packaging with electronics contained inside the cable
3)J2534 and J2534-1 compliant device driver
4)Commercial Range (0 to +70° C)
5)Cable length: 6 feet
6)Operating Voltage: Bus-powered by USB
7)Mangoose VPW supports GM TIS, SPS, TIS2WEB, and DPS flash reprogramming software

2. Bus Protocols

Mangoose VPW	CAN/ISO 15765/GMLAN GM Class2 (J1850VPW)
Mangoose PWM	CAN/(ISO 15765 J1850PWM
Mangoose ISO	CAN/ISO 15765 KWP2000 (ISO9141 / ISO14230)

3. Software Options

Mangoose Toyota Diagnostics and Reprogramming Interface With Completely New Chip is a USB pass-thru device that utilizes the SAE J2534-1 API. What this means is that the Mangoose uses a standard communications interface to the vehicle, allowing it to work with 3rd party diagnostic applications. Different diagnostics and data logging applications supported are currently supported by the Mangoose, with more being added all of the time.

4. PCMScan Diagnostics and Data Logging Software

This full version of PCMScan allows viewing, charting, data logging, and playback of diagnostic data in real time. Realistic looking gauges can be moved, resized, and laid out to resemble your own dashboard. Display English or Metric units. Read stored Diagnostic Trouble Codes (DTCs), clear the check engine light, and test emissions related systems.



5.PCMScan running on Mangoose ISO and Mangoose VPW

PCMScan running on Mangoose ISO(M-ISOCAN) or Mangoose VPW(M-VPWCAN) supports all ISO141 import vehicles and all CAN vehicles including all GM vehicles and many Ford, BMW, Honda, Toyota, Chrysler, Mitsubishi, Nissan, Volvo, Volkswagen, and many other automaker brands. By 2008 all vehicles on the road will be CAN based and supported by the Mangoose ISO/CAN adapter.

6.API

Drew Technologies also provides an application programmer interface (DLL) for OEMs, integrators, or end-users to develop their own PassThru (SAE J2534) applications. Create your own applications in LabVIEW™, C or Visual Basic.

FAQ:

Q:What's the difference between SP61 MINI VCI FOR TOYOTA SP62 Mangoose toyota diagnostic
A: They are from different factory, but the function is almost the same

Q: Why it ask me activate code when install the software?
A: No need activate, pls install the software in windows XP system, after installed the driver well, pls choose "European Market", then it won't show the same problem again

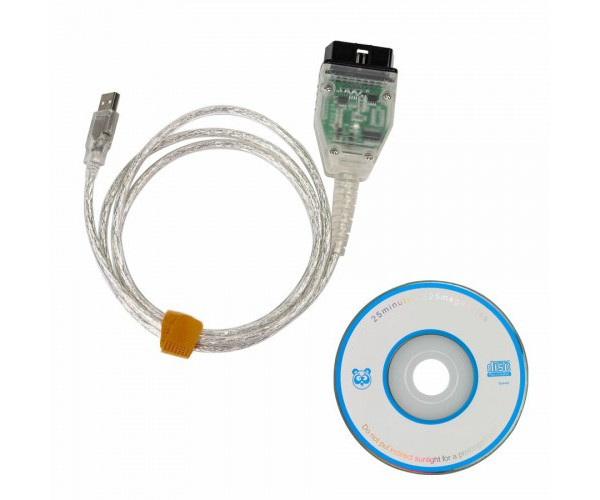

Package List:

Mangoose Vehicle Interface
Installation CD with Device Driver (J2534 compatible)
