Description

Vehicle Interface

Wired USB High-Speed Client Port(480 Mbps)

Wireless 802.11b/g/n on USB Dongle

Bluetooth Version 2.0 EDR on USB Dongle

PROCESSOR SYSTEM

Microprocessor Type I.MX6 Processor

Clock Speed 800 MHz

RAM SDRAM: 1 Gbyte DDR3:

ROM NAND Flash: 512 Mbytes

​Mass Storage 8 Gbytes Micro SD Card

USER INTERFACE

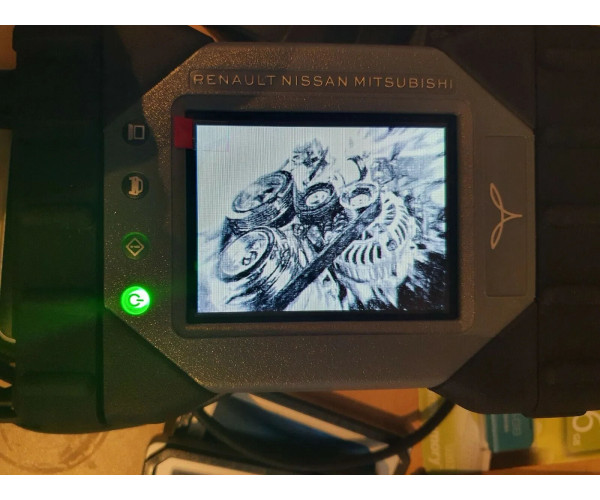

LED 4 LED’s – two LED’s are triple color

Audio Beeper (software frequency controlled)

Switch Recovery switch (for restoration of fail-safe software)

POWER

Vehicle From vehicle battery via DLC

External USB power

MECHANICAL CHARACTERISTICS

Size 171mm x 118mm x 41mm

Weight 240 grams

POWER SUPPLY

From the vehicle battery using the diagnosis connection cable

or from the PC using a connected USB cable.

Caution:

The diagnostic connector of the vehicle must be protected

by a fuse with a max. rating of 6 amps / 32 volts. 8 V to 28 V

Power Supply 750 mA

Operating Temperature -20 °C – +70 °C

Storage Temperature -40 °C – +80 °C

Humidity at 25 °C 30% – 95%

Maximum operating altitude 4000 m

Degree of protection with the diagnostic connection cable

not connected IP30

Degree of protection with the diagnostic connection cable

connected according to IEC 60529 IP 54, cat. 2

Degree of contamination 2

DIAGNOSIS CONNECTION CABLE J1962 (ISO 15031-3)

Voltage resistance DLC 26 Pin 18 V, CAT 0

Package list:

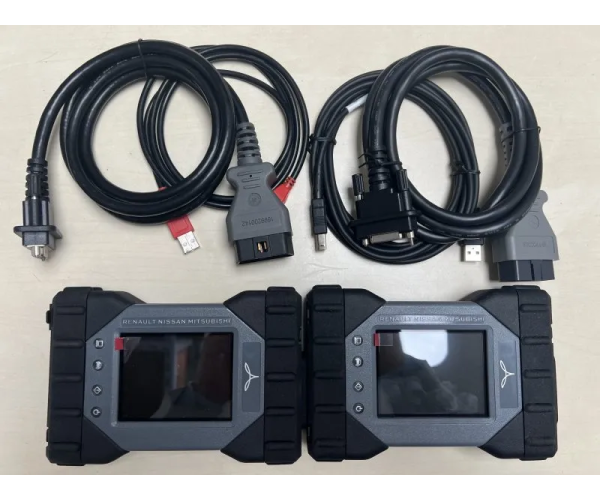

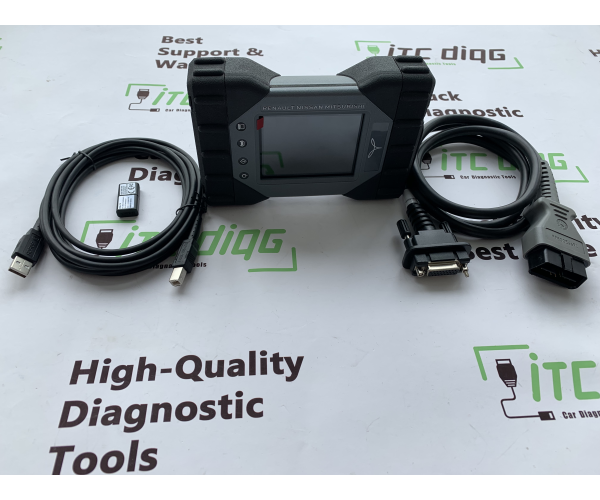

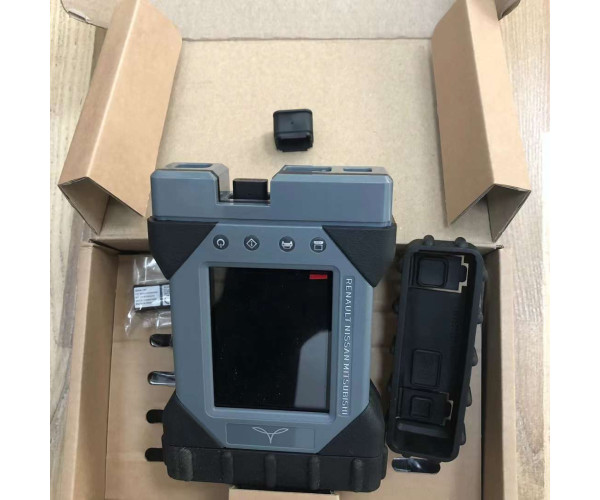

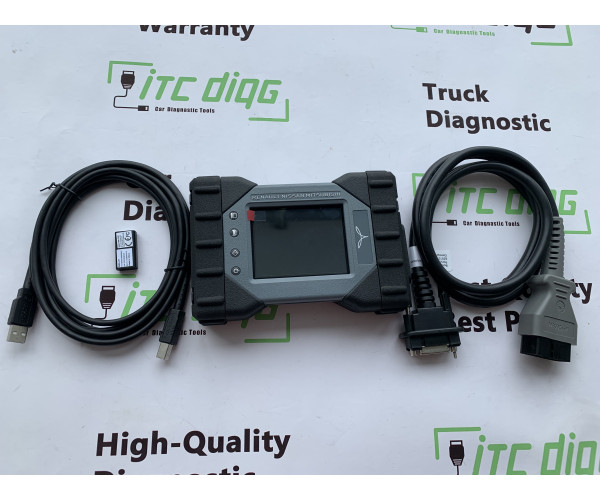

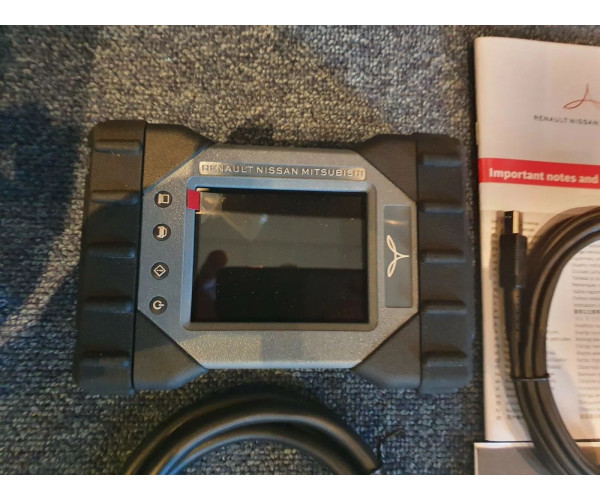

1 x RNM VCI Alliance Unit
2 x Wi-Fi Dongles USB
1 x 3m Rugged USB Cable
1 x 2m 16 Pin DLC Cable

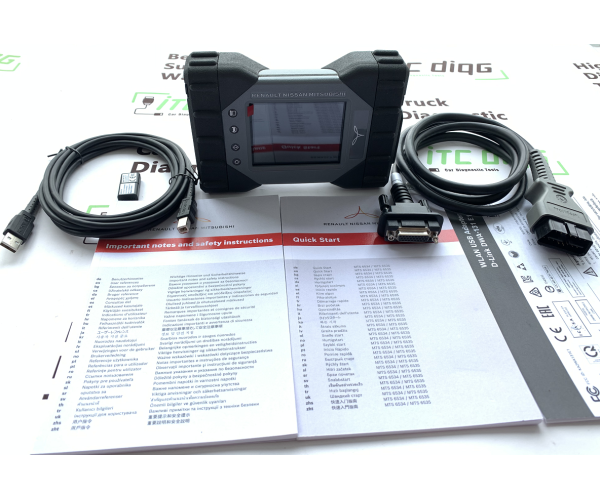

1 x Instructions & Quick Start Guide
​1 x USB RNM VCI Manager
