Description

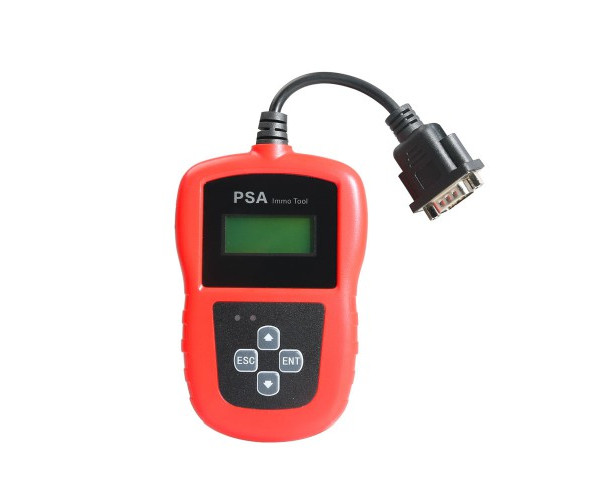

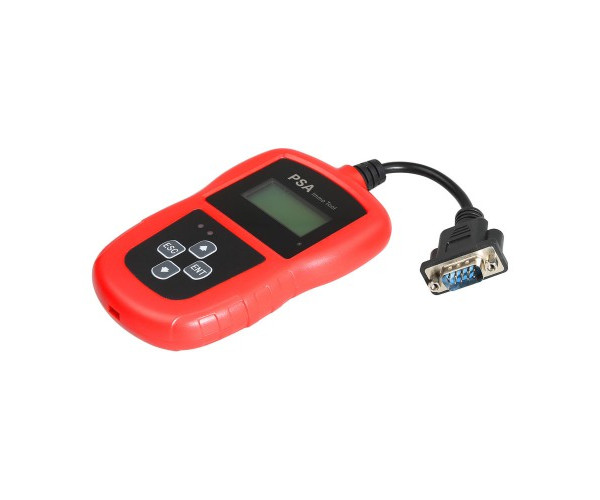

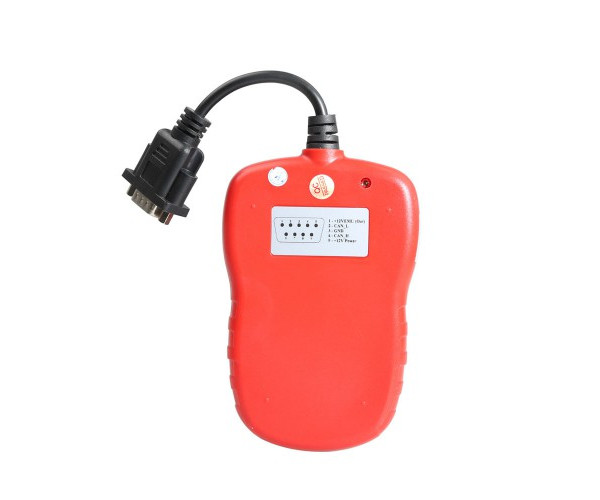

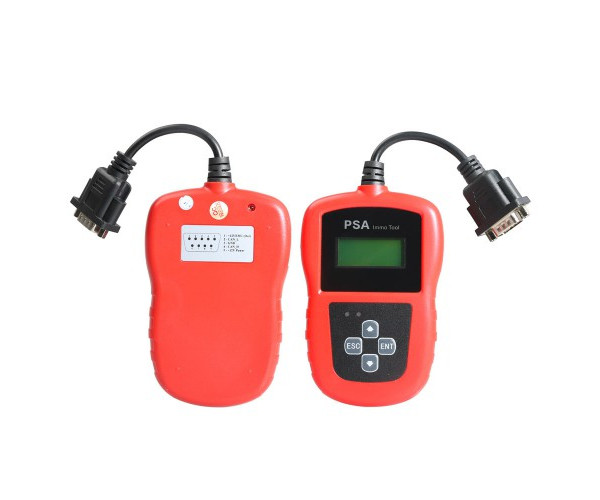

PSA IMMO Tool Mark Key Simulator for Peugeot Citroen from 2001 to 2018 Newest PIN Code Calculator and IMMO Emulator

With this tool, you will be able to extract the pin code from PSA engines in Peugeot and Citroen cars from 2001 to today!

The device has two main functions :one is pin code calculation via obd, it intercepts the signal from bsi to ecu, pin code from obd needs working key. Another function is the emulator programming this allows you to enter the pincode into the emu to run the car without key

The calculator has two modes, these are explained below.

Mode-1 Calculator: Connect the supplied OBD lead to car and select "Calculator" Then cycle the ignition 8 times. Each time to cycle the ignition the counter will increase. On the 8th turn the calculator will start working. Wait about 5 minutes and the security pin will be displayed on the screen.

Mode-2 Emulator: The Emulator function will just emulate a working key once the pin has been calculated. This can be useful for diagnosing problems with the security system.

Not all cars can be done via the diagnostic port, some cars require the calculator to be connected to the CAN H and L cables under the bonnet. Basically if a CAN H and L connection is available in the diagnostic port then you will be able to use the calculator through the OBDII port, if not then it requires a direct connection.

The calculator will work on cars from 2001 to the present day as long as its the ORIGINAL PSA engine type found in Peugeot and Citroen

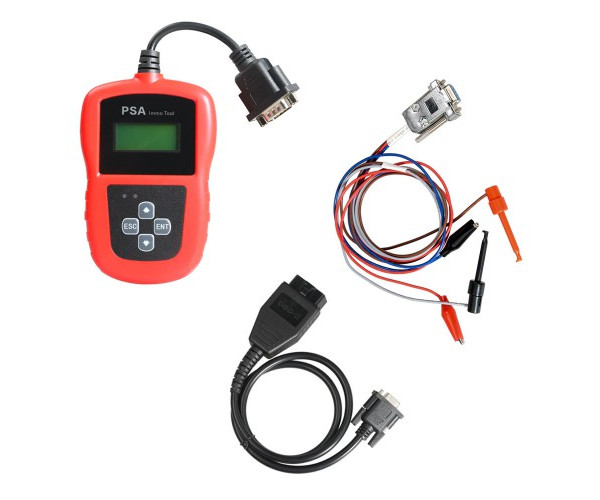

Package includes:

1PC x Handholder

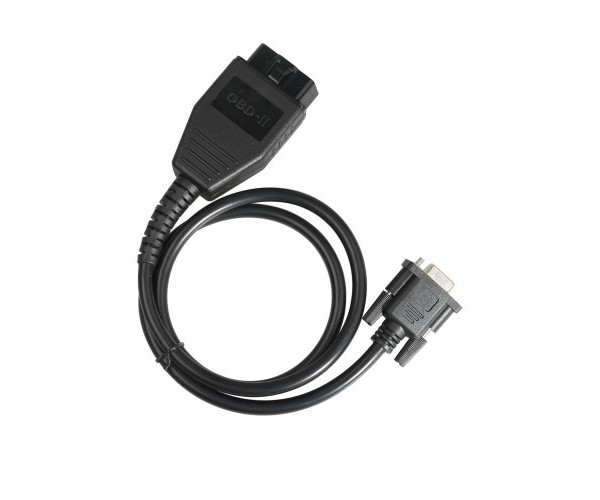

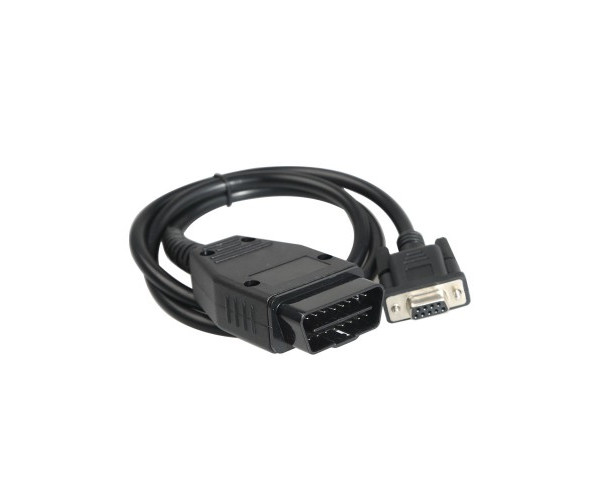

1PC x OBDII Lead

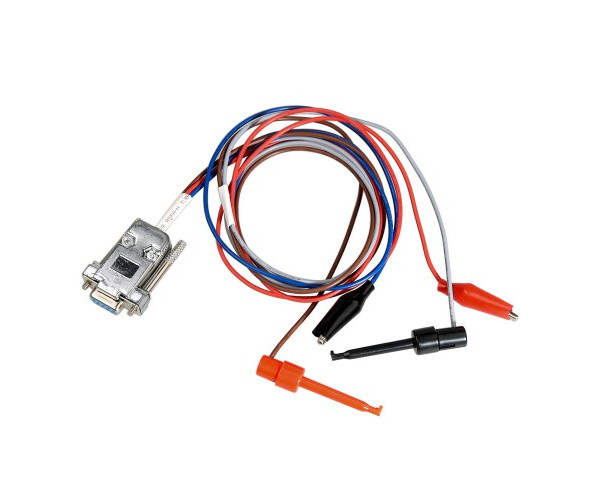

1PC x CAN connection cables
