Description

Autel MaxiDiag Elite MD704 Four System with Data Stream Update Online

Autel Maxidiag Elite MD704, the most advanced and multifunctional scan tool powered by its exclusive technology, is designed for technicians to troubleshoot either the basic four system or all the systems for most of the Italian and French vehicles on the road. This new diagnostic platform delivers fast and easy diagnostics at the right price. With the optional OBD-I adapter set, the MaxiDiagElite can diagnose older vehicles.

Supported car list:

Peugeot,Citroen,Renault,Dacia,Fiat,Abarth,Alfa-Romeo,Maserati,Lancia,EU Ford

Feature & Functions:

1. Supports all 10 test modes of the latest J1979 OBD II test specs,including Read Codes, Erase Codes, Live Data, Freeze Frame,I/M Readiness, O2 Mon.Test, On-Board Mon.Test, Component Test and Vehicle Information.
2. One tool can do it all-reads and clears trouble codes on 4 systems(Engine, Transmission, ABS and Airbag).
3. OBD II code tips guide technicians to the root cause of trouble code faster
4. With optional OBD1 adaptor, MD704 can do older car models.
5. Reads live datastream and freeze frame
6. One year free software upgrade
7. Enhanced OBD II Mode 6
8. Turns off warning lights
9. Prints data via PC
10. Data graphing

Specification:

Display: TFT color display (320 x 240 dpi)
Operating Temperature: 0 to 60°C (32 to 140 °F)
Storage Temperature: -20 to 70°C (-4 to 158 °F)
External Power: 12.0 to 18.0 V power provided via vehicle battery or adapter
Length\Width\Height: 212 mm (8.35”)\110.5 mm (4.35”)\37.5 mm (1.48”)
Main Unit Weight: 0.28kg(without wire) 0.484kg(with wire)

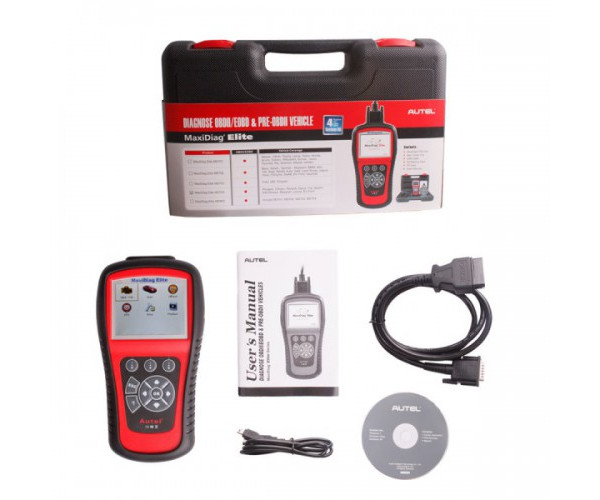

Package list:

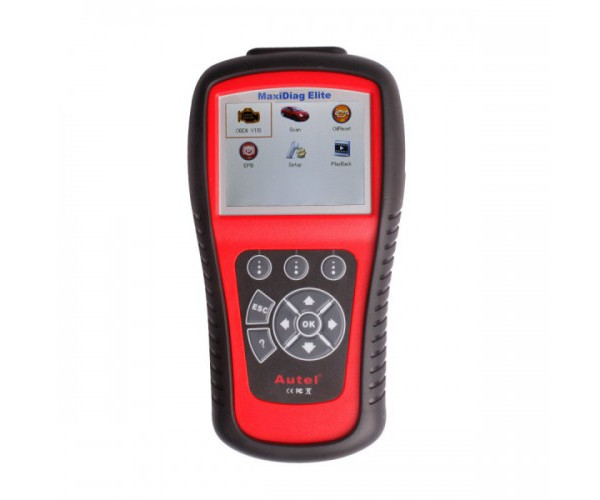

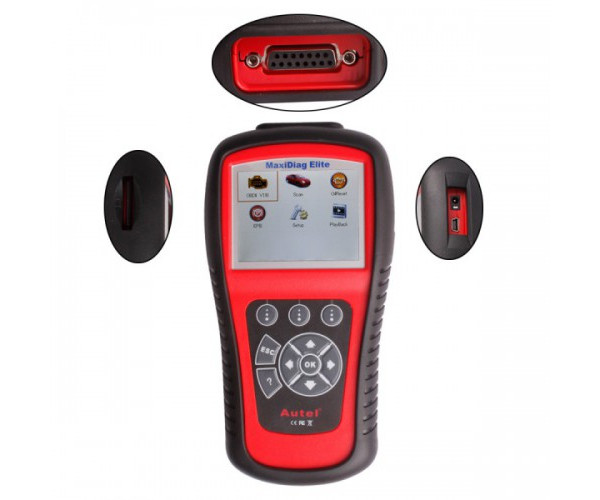

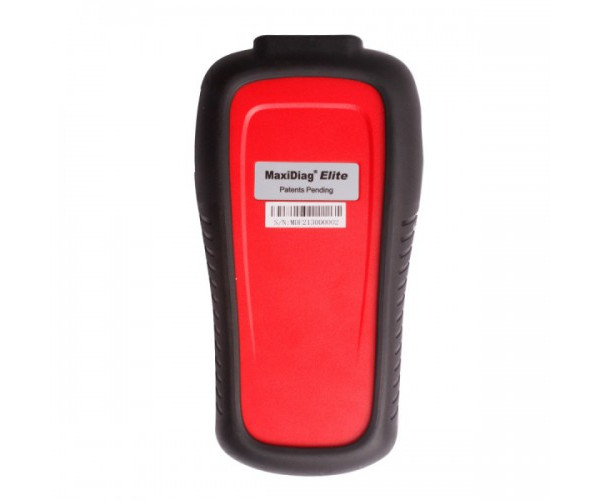

1pc x MD704 Main unit
1pc x SD Card

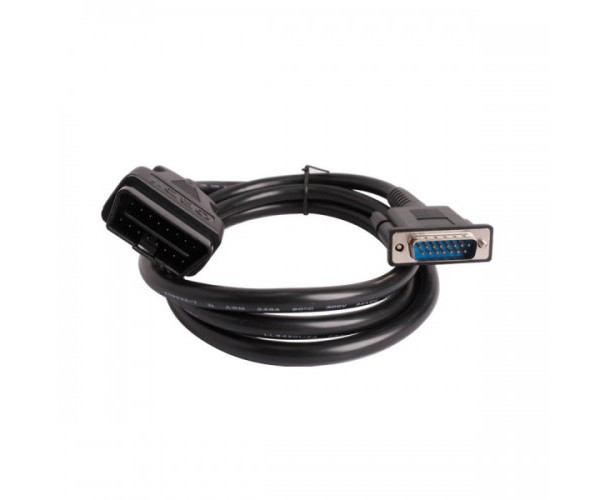

1pc x OBDII Cable

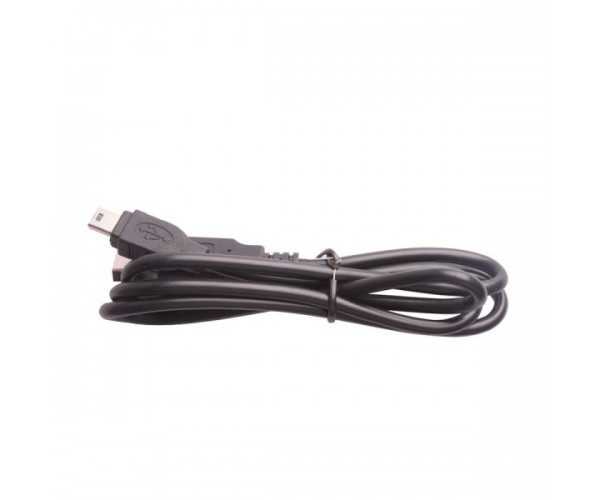

1pc x USB Cable
1pc x User's Manual

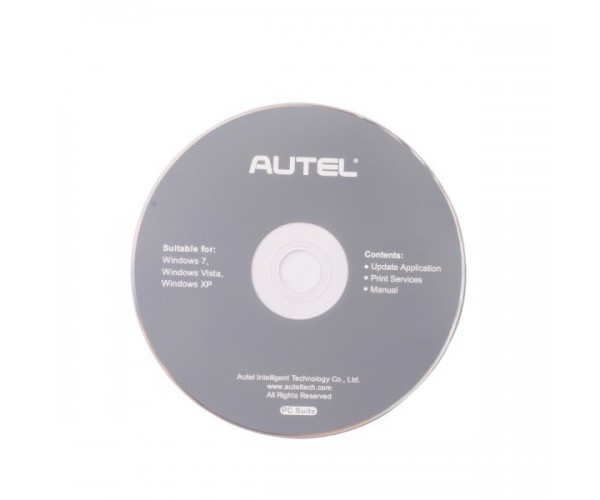

1pc x CD

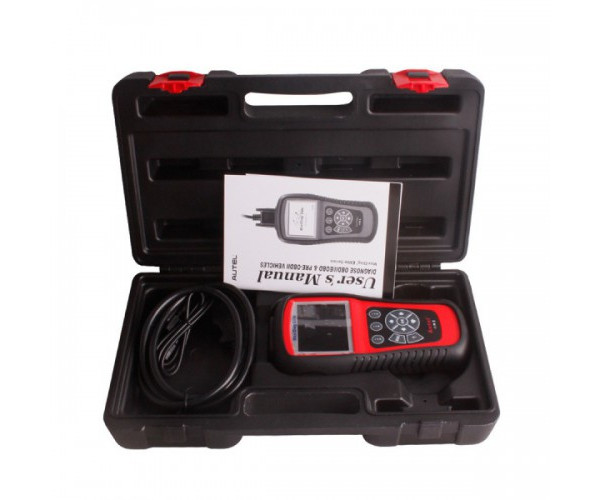

1pc x Carry Case
