Description

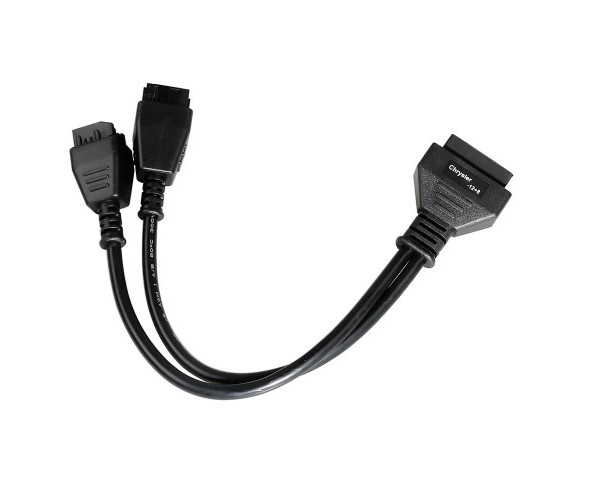

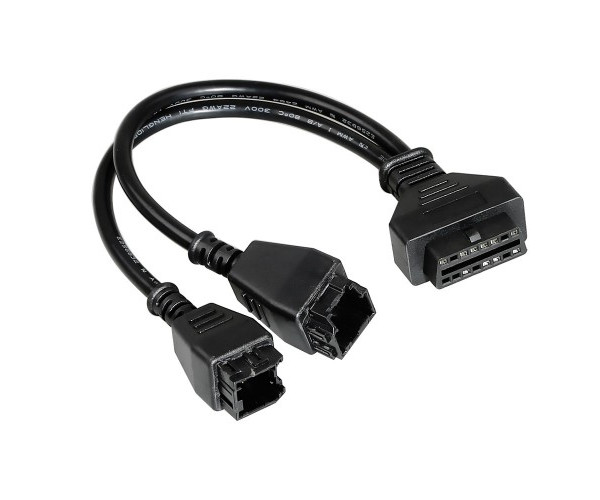

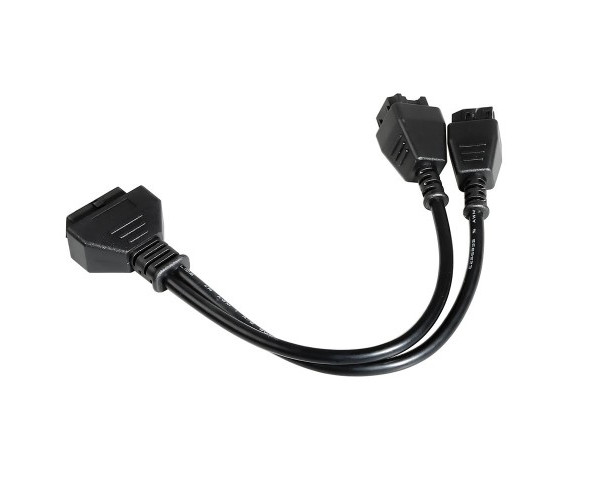

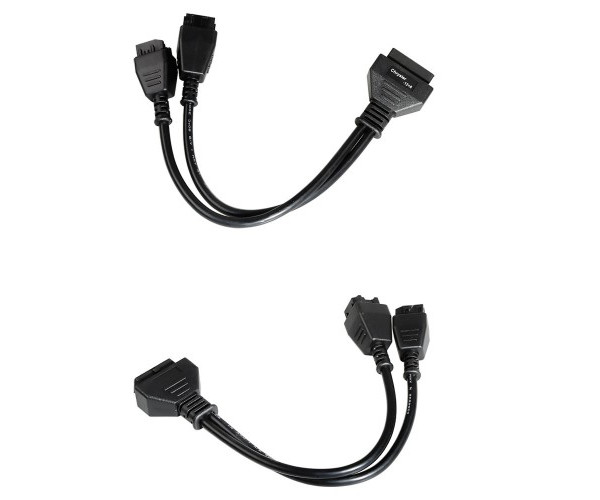

OBDSTAR FCA 12+8 UNIVERSAL ADAPTER for OBDSTAR X300DP or X300DP PLUS

FCA 12+8 ADAPTER Functions:

1. Used in key programming and cluster calibration via OBDII
2. Used with other diagnostic devices to read and clear fault code

Development Background:

Vehicles are equipped with sgw safety gateway modules to prevent access to the vehicle from the OBD2 port via a non-original diagnostic scanner.
The purpose of this module is to prevent attacks on the vehicle network via the CAN bus.

How to Use FCA 12+8:

Locate and unplug the 12pin and 8PIN connectors of the SGW module, then connect the FCA 12+8 directly to the 12pin and 8pin (two connectors connected to the SGW) connector on the car. At this point, normal communication with the car can be achieved.

FCA 12+8 ADAPTER Vehicles List:


FIAT	MASERATI	CHRYSLER	DODGE	JEEP
2018- FIAT	2018- MASERATI and GHIBLI	2018- CHRYSLER 300   2018- CHRYSLER PACIFICA	2018- DODGE CHALLENGER   2018- DODGE CHARGER   2018- DODGE DURANGO   2018- DODGE JOURNEY   2018- RAM	2018- JEEP CHEROKEE   2018- JEEP GRAND CHEROKEE   2018- JEEP COMPASS   2018- JEEP WRANGLER   2018- JEEP RENEGADE

Examples of some models:

2018-DODGE RAM 1500/2500/3500



2018-DODGE DURANGO and 2018 JEEP GRAND CHEROKEE



2018 MASERATI GHIBLI SGW Location:
Remove the steering wheel guard, at the bottom of steering column



Package includes:

1pc x OBDSTAR FCA 12+8 UNIVERSAL ADAPTER for OBDSTAR X300DP or X300DP PLUS
